Grinding is a widely used manufacturing process essential for achieving fine surface finishes and precise dimensional tolerances. It is a key part of the machining industry, allowing for the production of components that require accuracy and smooth surfaces. From automotive parts to aerospace components, grinding plays a crucial role in ensuring the quality and functionality of a variety of materials.

In this post, we’ll dive deeper into what grinding is, how it works, and the different types of grinding processes used in manufacturing.

How Grinding Works

At its core, grinding is a material removal process that uses a rotating abrasive wheel to smooth or shape a workpiece. Unlike traditional cutting methods, grinding relies on the abrasive properties of the grinding wheel to remove material. The wheel is made of small, hard particles that grind against the surface of the workpiece, gradually removing fine layers of material.

As the wheel rotates, the abrasive particles on its surface interact with the workpiece, shearing off small amounts of material and leaving behind a finely finished surface. This process is particularly useful for achieving highly precise dimensions and surface finishes that cannot be accomplished with standard cutting tools.

A grinding machine typically consists of several key components:

• Grinding Wheel: The heart of the grinding machine, the grinding wheel is made of abrasive particles bonded together. It performs the actual cutting by removing material from the workpiece surface.
• Wheel Head: This component houses the grinding wheel and contains the mechanisms required to drive and control its rotation. It allows for accurate adjustment of the wheel’s position during operation.
• Table: The table supports the workpiece and provides controlled movement—either linear or rotary—depending on the machine type. Its precision movement is crucial for accurate grinding.
• Coolant System: This system delivers coolant fluid to the grinding area to dissipate heat, prevent thermal damage to the workpiece, and flush away swarf (metal particles) generated during grinding.
• Control Panel: The operator uses the control panel to manage various machine settings, including spindle speed, feed rate, and grinding depth. It ensures precision and repeatability in the grinding process.
• Dresser: The dresser is used to maintain the grinding wheel’s shape and surface sharpness. Regular dressing ensures consistent cutting performance and prolongs wheel life.
• Safety Guards: Installed around the grinding wheel and other critical areas, safety guards protect the operator from sparks, debris, and accidental contact with moving parts.

Applications and Importance of Grinding

Grinding is used across a wide range of industries where precision and smooth finishes are crucial. Some of the most common applications of grinding include:

• Automotive: For machining engine components, transmission parts, and gears with exacting tolerances.
• Aerospace: Precision grinding is used for parts like turbine blades, shafts, and other complex components where even minor imperfections can affect performance.
• Tool manufacturing: Grinding is used to sharpen cutting tools, such as drills, mills, and knives, ensuring they maintain their effectiveness and precision.
• Medical devices: In the medical field, grinding is used for components like implants and surgical tools, which require both high precision and smooth surfaces.

Grinding also plays a significant role in finishing processes. It is commonly used when parts are too hard or too delicate for conventional machining techniques, such as milling or turning. By utilizing grinding, manufacturers can achieve tolerances down to microns and surface finishes that are critical for the proper functioning of certain components.

Types of Grinding Processes

Grinding is not a one-size-fits-all process. Depending on the shape, material and requirements of the workpiece, there are several different types of grinding methods used. Below are some of the most common:

1. Surface Grinding
   This process is used to produce flat surfaces. The workpiece is held on a magnetic chuck or fixture, and the grinding wheel is moved across the surface to achieve a smooth, even finish. Surface grinding is often used to refine parts that require a precise flatness or smoothness, such as machine tool beds and precision components.

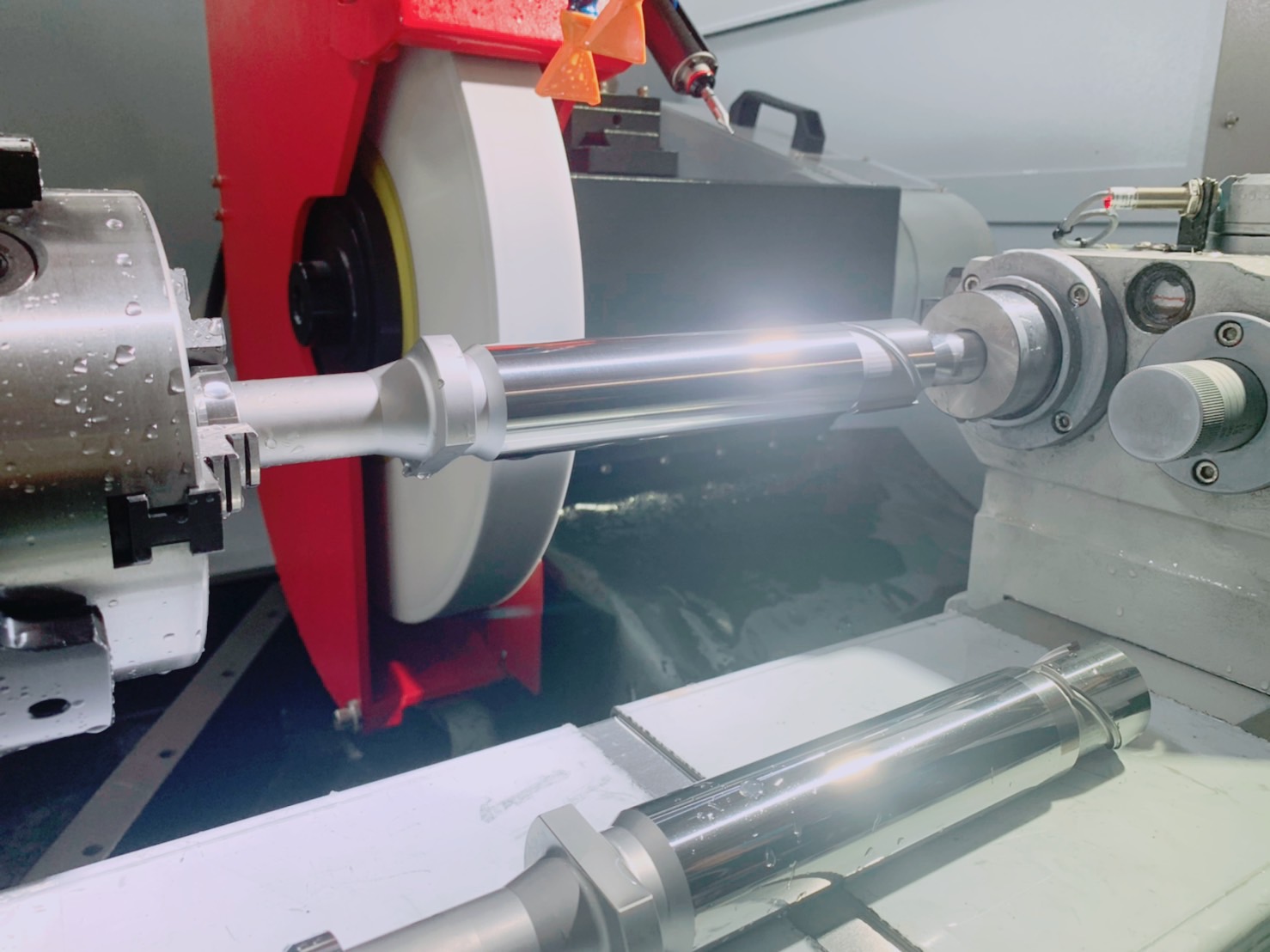

2. Cylindrical Grinding
   Cylindrical grinding is used for grinding cylindrical or rounded workpieces. The workpiece is held between two centers or clamped in a chuck while the grinding wheel rotates around it. This method is commonly used to finish shafts, spindles, and other parts with circular shapes. The cylindrical grinding process can achieve excellent dimensional accuracy and surface finishes.
3. Centerless Grinding
   In centerless grinding, the workpiece is supported by a regulating wheel and an abrasive grinding wheel, with no need for clamping the part in place. The workpiece is fed between the wheels, and the grinding process occurs as the part moves continuously along the wheel’s path. Centerless grinding is particularly useful for parts that are long, cylindrical, and require consistent diameters along their length. It is commonly used for parts like rods, bars, and bearings.

To read about more types of grinding, see Choosing the Right Grinding Method for Your Materials​

The Advantages of Grinding

Grinding offers several advantages over other machining methods, especially when dealing with hard materials or high-precision applications. Some of the key benefits include:

• High precision: Grinding allows for incredibly tight tolerances, making it ideal for applications where accuracy is critical.
• Smooth surface finish: The abrasive action of the grinding wheel creates a fine surface finish that is often superior to other machining methods.
• Material versatility: Grinding can be used on a wide range of materials, including hard metals, ceramics, and composites, which might be difficult to machine using traditional cutting methods.
• Complex shapes: Grinding can be used to produce intricate shapes, fine features, and sharp edges that might be difficult to achieve with other tools.

Conclusion

Grinding is an essential process in the world of precision manufacturing, allowing shops to create components that meet stringent specifications for accuracy, surface finish, and durability. Whether it’s surface grinding, cylindrical grinding, or centerless grinding, each method plays a unique role in ensuring the highest quality products.

With its ability to work with tough materials, achieve tight tolerances, and provide smooth finishes, grinding remains a fundamental process in industries like automotive, aerospace, and medical device manufacturing. Understanding the different types of grinding and their applications can help businesses choose the right approach for their specific needs, ensuring the production of high-quality, reliable components.

Spotlight Customer: TD Wright

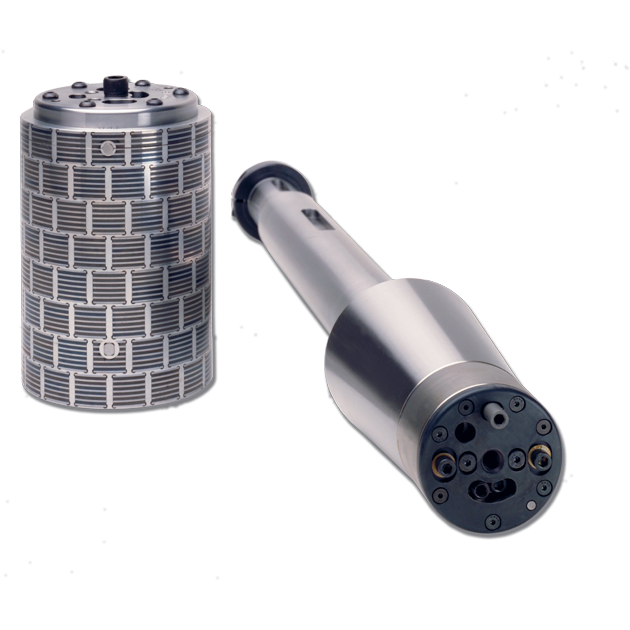

TD Wright, a leading manufacturer of magnetic cylinders for printing, converting, and die cutting, has established itself as a cornerstone in the printing and packaging industries. With nearly a century of experience, TD Wright is known for its groundbreaking technology, such as the ENOC™ System, and a commitment to quality and precision in its products. TD Wright emphasizes on continually improving manufacturing processes and forming strong partnerships with industry leaders, like Supertec, to ensure the best results for its customers.

Supertec Grinding Machines: A Key Component in TD Wright’s Manufacturing Excellence

Bob Heitman, the Production Manager at TD Wright, shared how the company has been using Supertec’s machines to grind its products for 20 years. Over the years, TD Wright has purchased several machines from Supertec, including the G38P-100CNC cylindrical grinder, G38P-60CNC cylindrical grinder, and EGI-150CNC ID grinder.

G38P-100CNC: A Reliable Workhorse Since 2005

The G38P-100CNC, purchased in 2005, has been a reliable machine for TD Wright, running in excellent condition even after 18 years. The only major maintenance required was a hydraulic pump replacement, highlighting the durability and reliability of Supertec’s machines.

See the machine here: Supertec G38P-100CNC

G38P-60CNC: Still Going Strong Since 2018

The G38P-60CNC, which has been in use for rough grinding since 2018, continues to meet the company’s needs without any signs of wear, demonstrating Supertec’s commitment to longevity and consistent performance.

See the machine here: Supertec G38P-60CNC

EGI-150CNC: Precision and Flexibility

The EGI-150CNC features a workhead that tilts to a 5-degree grinding angle, with fine-tuning capabilities that provide both precision and flexibility. This machine is capable of grinding multiple materials such as magnets, ceramics, steel, and aluminum—all in one machine and in one process. This level of versatility is essential for TD Wright’s production requirements, where precision and flexibility are key.

See the machine here: Supertec EGI-150CNC

For over 19 years, TD Wright has operated Supertec’s three powerful machines daily for various grinding processes, with performance that has been consistently reliable. The Supertec Team has been an invaluable support resource, providing excellent applications, preventative maintenance, and training, ensuring that TD Wright continues to run smoothly and efficiently.

TD Wright also partners with Martin Sales to demonstrate Supertec machines and their grinding performance to visitors, showcasing how these machines contribute to the business’s continued growth.

“Since 2005, Supertec’s machines have been running non-stop every day for our grinding process, grinding a mixture of different materials at the same time, without any major issue. Rafael, John, and Marco were very helpful in the support we needed.”

Bob Heitman, Production Manager, TD Wright

TD Wright’s partnership with Supertec has been a key factor in maintaining the high standards of quality and precision in its production processes. With two decades of reliable service from Supertec’s machines, TD Wright continues to evolve and adapt to the demands of the printing, converting, and die cutting industries. Supertec’s grinding technology and customer support have played a crucial role in ensuring the ongoing success of TD Wright’s operations. Moving forward, TD Wright will undoubtedly continue to lead the way in metal decorating, leveraging both innovation and long-standing industry relationships to stay ahead of the curve.

For more information, visit TD Wright’s website.

Types of Grinding Processes

Grinding is not a one-size-fits-all process. Depending on the shape, material, and specific requirements of the workpiece, there are several types of grinding methods used in manufacturing. Below are some of the most common and specialized grinding techniques:

Surface Grinding

This process is used to produce flat surfaces. The workpiece is held on a magnetic chuck or fixture, and the grinding wheel moves across the surface to achieve a smooth, even finish. Surface grinding is often used to refine parts that require precise flatness or smoothness, such as machine tool beds and precision components.

Cylindrical Grinding

Cylindrical grinding is used for grinding cylindrical or rounded workpieces. The workpiece is held between two centers or clamped in a chuck while the grinding wheel rotates around it. This method is commonly used to finish shafts, spindles, and other parts with circular shapes. It can achieve excellent dimensional accuracy and surface finishes.

Centerless Grinding

In centerless grinding, the workpiece is supported by a regulating wheel and an abrasive grinding wheel, with no need for clamping the part in place. The workpiece is fed between the wheels, and the grinding occurs as it moves continuously. Centerless grinding is ideal for parts that are long, cylindrical, and require consistent diameters, such as rods, bars, and bearings.

Internal Grinding

Internal grinding is used to finish the inside surfaces of a cylindrical part. A small grinding wheel rotates inside the workpiece, which is usually held in a chuck. This method is essential for machining internal bores and holes with high precision, such as in bearing races or engine cylinder bores.

Creep-Feed Grinding

Creep-feed grinding is a slow, deep-cutting process that removes large amounts of material in one pass. It’s particularly effective for complex forms and hard-to-machine materials. This process is often used in aerospace and turbine manufacturing for parts like blades and vanes.

Form Grinding

Form grinding uses a specialized grinding wheel shaped to the profile of the desired part. As the wheel moves along the workpiece, it imparts its profile onto the material. This is ideal for producing gears, splines, and other components with specific forms or contours.

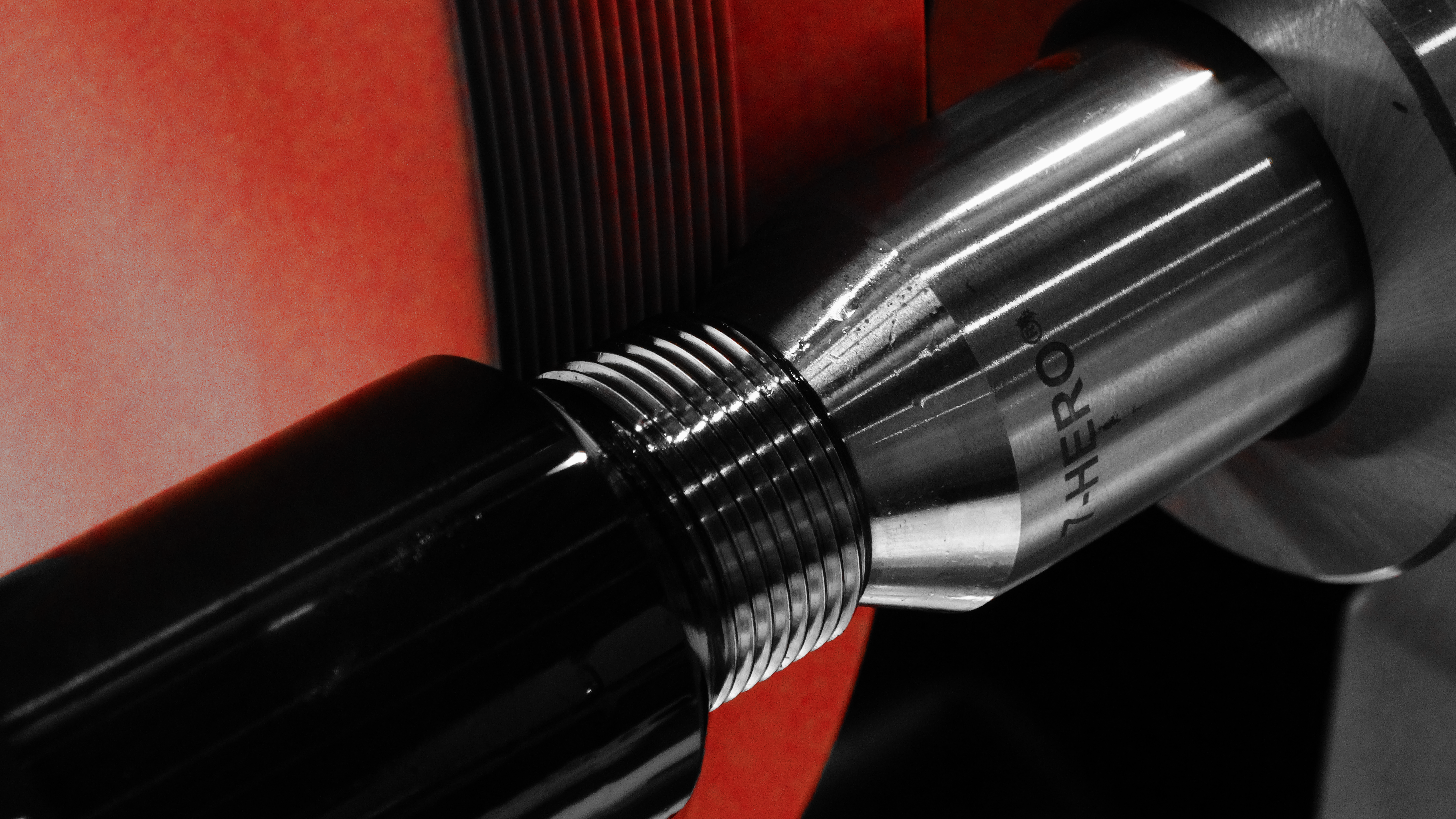

Thread Grinding

Thread grinding produces accurate threads on hardened materials where other threading methods are impractical. It is often used for high-precision components such as lead screws, worm shafts, and ball screws in industries that demand perfect alignment and tight tolerances.

Gear Grinding

Used to finish gears after they have been heat-treated, gear grinding ensures high accuracy in tooth profiles and surfaces. This method is crucial for minimizing noise, wear, and vibration in gear mechanisms and is common in automotive and heavy machinery manufacturing.

Center Grinding

This process is used to grind the ends of cylindrical workpieces to prepare them for further precision machining. It ensures accurate center holes, which are critical for turning operations or other processes where precise concentricity is required.

Choosing the Right Grinding Method Based on Material

Selecting the appropriate grinding method often depends on the material type, geometry of the part, and tolerance/surface finish requirements:

• Hard metals (e.g., tool steel, tungsten carbide): Use cylindrical, creep-feed, or surface grinding depending on part shape. These methods provide high precision and can handle the toughness of hard materials.
• Soft or ductile materials (e.g., aluminum, copper): These are typically more prone to clogging grinding wheels. Surface or centerless grinding with appropriate wheel grades (open structure, coarser grit) is preferred.
• Brittle materials (e.g., ceramics, glass): Require creep-feed or internal grinding with fine abrasives to avoid cracking or chipping.
• Heat-treated or hardened components: Gear, thread, and form grinding are commonly used post-heat treatment to achieve the necessary precision and hardness.
• Long, slender parts (e.g., rods, tubes): Centerless grinding is best due to its ability to support and stabilize parts without bending.

Choosing the correct method not only improves machining efficiency but also extends tool life and ensures optimal surface integrity of the final product.
